Size | EG 30 | EG 40 | EG 60 | EG 80 | ||||
---|---|---|---|---|---|---|---|---|
Forces / Torques | static | dynamic | static | dynamic | static | dynamic | static | dynamic |
Fx(N) | 750 | 600 | 1500 | 1200 | 2500 | 2000 | 4200 | 3500 |
Fy(N) | 90 | 60 | 350 | 315 | 500 | 450 | 1000 | 900 |
Fz(N) | 90 | 60 | 500 | 450 | 750 | 675 | 1125 | 1000 |
Mx(Nm) | 10 | 5 | 20 | 18 | 33 | 30 | 82 | 75 |
My(Nm) | 13 | 6 | 44 | 40 | 77 | 70 | 220 | 200 |
Mz (Nm) | 14 | 7 | 33 | 30 | 55 | 50 | 165 | 150 |
No-load torque | ||||||||
---|---|---|---|---|---|---|---|---|
Trapezoidal thread | 10×3 | – | 18×4 | 18×8 | 24×5 | 24×10 | 28×5 | 28×10 |
(Nm) | 0,4 | – | 0,70 | 0,70 | 0,50 | 0,80 | 0,80 | 1,0 |
Ballscrew | 8×2,5 | – | 16×5 | 16×10 | 25×5 | 25×10 | 32×5 | 32×10 |
(Nm) | 0,25 | – | 0,40 | 0,60 | 0,40 | 0,70 | 0,80 | 1,0 |
Geometrical moments of inertia of aluminium profile | ||||
---|---|---|---|---|
Ix mm4 | 4,09×104 | 1,35×105 | 5,65×105 | 19,14×105 |
Iy mm4 | 4,00×104 | 1,48×105 | 6,12×105 | 20,12×105 |
Elastic-modulus N/mm² | 70000 | 70000 | 70000 | 70000 |
Afmetingen | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | Basic length L | A | B | C | D | E | F | H | J | K | MM for | NN for | OO for | P | Q | R | S Øh6 x length | T | Basic weight | Weight per 100 mm |
EG 30 | 120 | 70 | 56 | 42 | 40xl | 13 | 35 | – | 26 | 47 | – | M 6 | M 6 | 18 | 82 | – | 5×15 | 4,2 | 0,0kg | 0,16 kg |
EG 40 | 170 | 70 | – | 58 | 48xl | 18 | 47 | – | 35 | 64 | – | M 6 | M 6 | 25 | 117 | 3x3x25 | 10×27 | 6,5 | 1,3 kg | 0,36 kg |
EG 60 | 235 | 100 | 80 | 82 | 62xl | 30 | 69 | – | 49 | 90 | – | M 8 | M 8 | 35 | 165 | 5x5x28 | 14×35 | 8,5 | 4,0 kg | 0,67 kg |
EG 80 | 286 | 140 | 110 | 102 | 80×1 | 40 | 88 | 30 | 70 | 121 | M 6 | M 10 | M 10 | 45 | 193 | 6x6x40 | 18×45 | 8,5 | 6,7 kg | 1,14 kg |

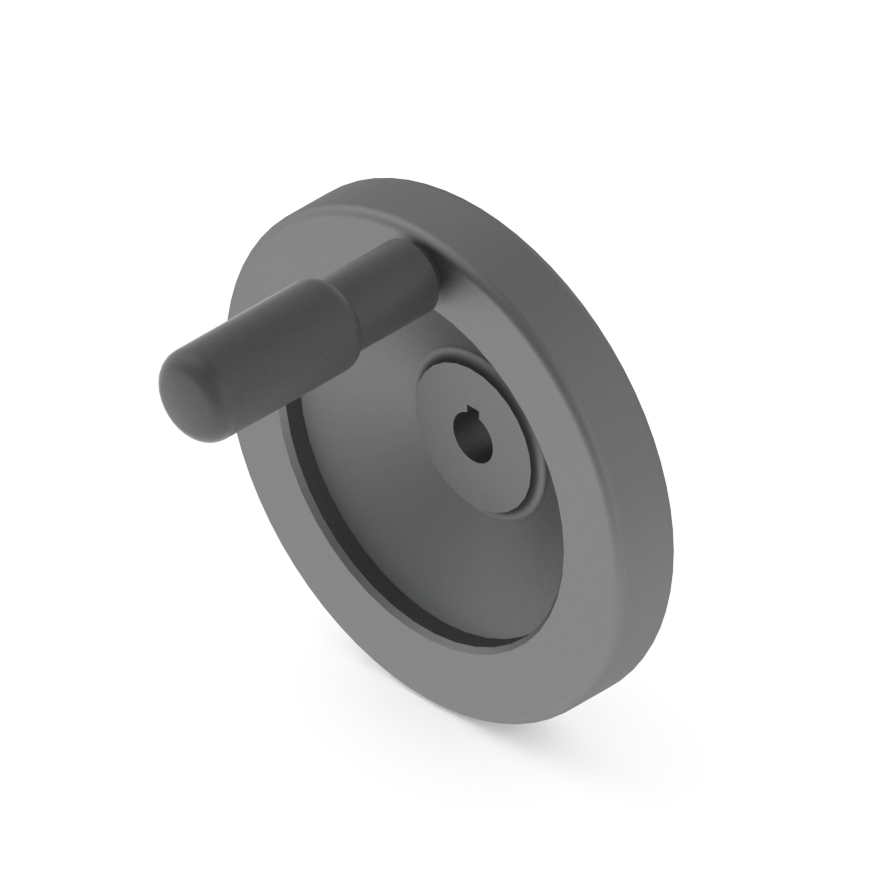

Code-No. | Type | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|---|
00050 | 30 | 70 | 6 | 17 | 13 | 15 | – | 20 |
00100 | 40 | 100 | 10 | 29 | 14,5 | 17 | 3×3 | 30 |
00160 | 60 | 140 | 14 | 36 | 16,5 | 19 | 5×5 | 36 |
00200 | 80 | 200 | 18 | 42 | 20,5 | 24 | 6×6 | 45 |
00222 | 100 | 200 | 22 | 42 | 20,5 | 24 | 6×6 | 45 |

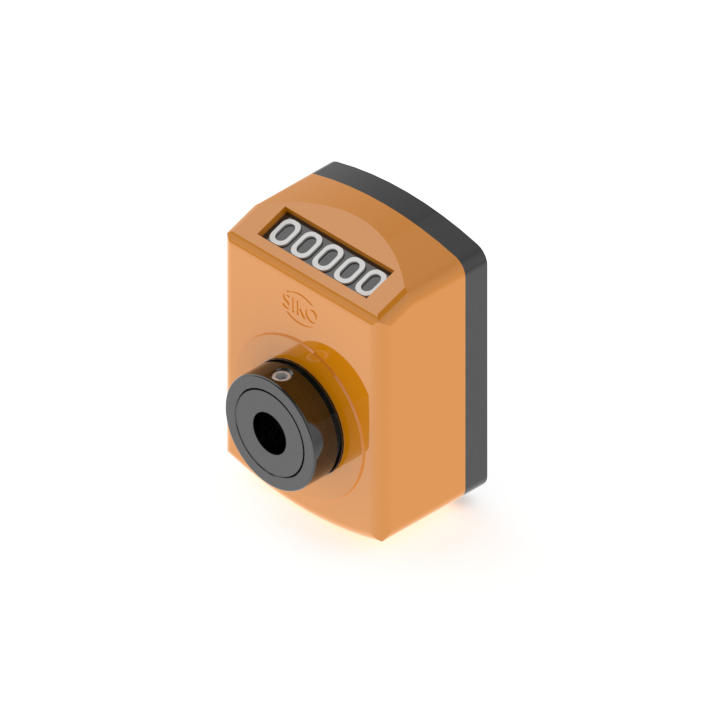

Code-No. | Size | AxBxC | D | Type | pitch (mm) |
---|---|---|---|---|---|
00231. | EL / EG 30 | 33x47x31 | 6 | SH | 2,5 od. 3 |
00232.. | 33x47x31 | 6 | FH | 2,5 od. 3 | |
00233.. | 33x47x31 | 6 | SV | 2,5 od. 3 | |
00234. | 33x47x31 | 6 | FV | 2,5 od. 3 | |
00241. | EL / EG 40, 60, 80 | QS 60, 80 | DL / DS 120, 160 | 48x67x51 | 12,17,20 | SH | 4 od. 8 |
00242. | 48x67x51 | 12,17,20 | FH | 4 od. 8 | |
00243.. | 48x67x51 | 12,17,20 | SV | 4 od. 8 | |
00244. | 48x67x51 | 12,17,20 | FV | 4 od. 8 | |
00251. | 48x67x51 | 12,17,20 | SH | 5 od. 10 | |
00252. | 48x67x51 | 12,17,20 | FH | 5 od. 10 | |
00253.. | 48x67x51 | 12,17,20 | SV | 5 od. 10 | |
00254.. | 48x67x51 | 12,17,20 | FV | 5 od. 10 | |
00261.. | EL 100, 125 | QS 10 | DL 200 | 56x75x64 | 22,25,30 | SH | 6 od. 12 |
00262.. | 56x75x64 | 22,25,30 | FH | 6 od. 12 | |
00263. | 56x75x64 | 22,25,30 | SV | 6 od. 12 | |
00264. | 56x75x64 | 22,25,30 | FV | 6 od. 12 | |
00265.. | EL / EG 40, 60, 80, 100, 125 | QS 60, 80, 100 | DL / DS 120, 160, 200 | 48x76x39 | 12,17,20,22,25,30 | SH | 0-14 |
00266.. | 48x76x39 | 12,17,20,22,25,30 | FH | 0-14 | |
00267. . | 48x76x39 | 12,17,20,22,25,30 | SV | 0-14 | |
00268. | 48x76x39 | 12,17,20,22,25,30 | FV | 0-14 |

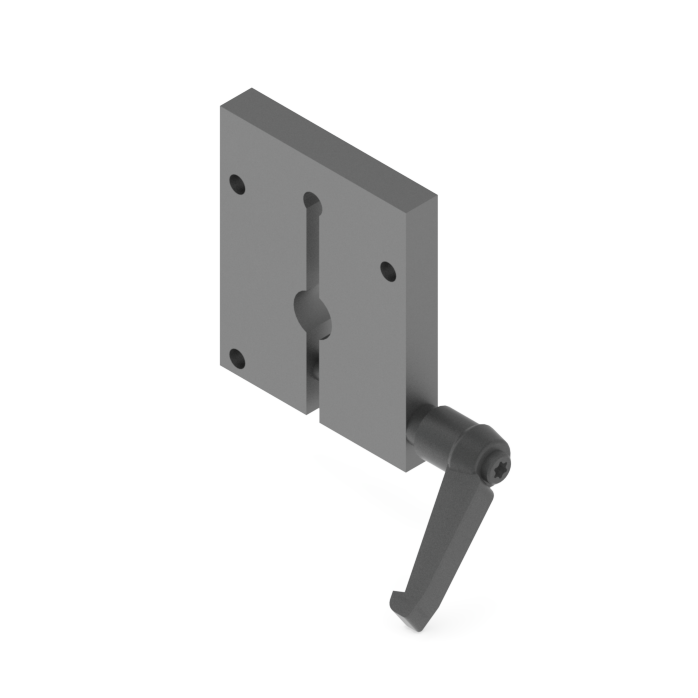

Code-No. | Type | A | B | C | D | Handlever |
---|---|---|---|---|---|---|
00291 | EL/EG 30 | 43 | 50 | 10 | 6 | M6 |
00292 | EL/EG 40 | 58 | 70 | 10 | 12 | M6 |
00293 | EL/EG 60 | 80 | 80 | 15 | 17 | M8 |
00294 | EL/EG 80 | 100 | 100 | 20 | 20 | M10 |
00295 | E 100 | 130 | 130 | 20 | 25 | M10 |
00296 | E 125 | – | – | – | – | – |
00283 | DL/DS 120 | 62 | 80 | 15 | 12 | M6 |
00284 | DL/DS 160 | 80 | 90 | 20 | 17 | M 8 |
00285 | DL/DS 200 | QS 100 | 90 | 99 | 20 | 25 | M 8 |
00286 | QS 80 | 80 | 90 | 20 | 17 | M 8 |
00287 | QS 60 | 62 | 80 | 15 | 12 | M6 |

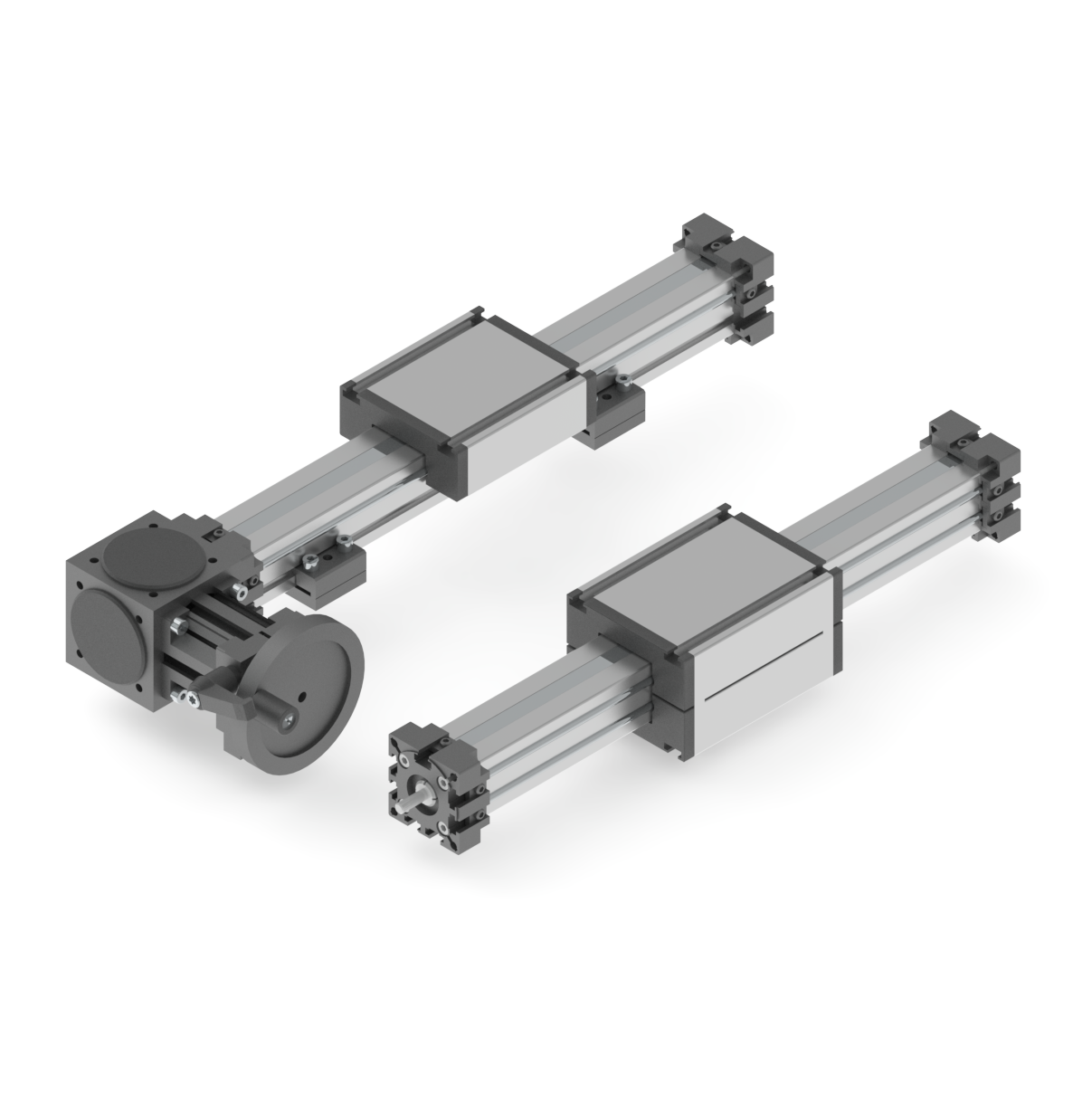

“Mechanische profielbuisverstelling met glijlagergeleiding aan de buitenzijde”
De aandrijving vind plaats door een binnenliggende trapezium- of kogelomloopspindel. Hiermee kan een herhaalnauwkeurigheid bereikt worden van ±0,2 mm respectievelijk ±0,025 mm.
Standaard leverbaar met handwiel, spindelklemming en positioneeraanduider.
Optioneel als links-rechts systeem leverbaar. Op aanvraag ook te voorzien van een motor(reductor).
De profielbuis en de slede zijn voorzien van montage-sleuven. Hiermee is het systeem te bevestigen aan uw constructie, kunnen constructie delen aan de slede bevestigt worden en zijn eind- en naderingschakelaars te monteren.
